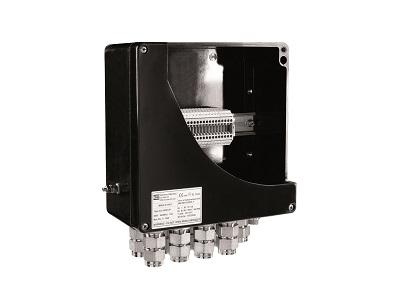

AQ-AR IN GRP
- AQ../AR.. Series enclosures are ideally suited for chemical and petrochemical environments;
- Made of GRP (Glassfiber reinforced polyester), AQ../AR.. enclosures guarantee high resistance to sea water corrosion and can withstand the harshest temperatures;
- Used to house Ex e and Ex i terminals. Maximum number of terminals changes according to: terminals section, enclosure operating temperature and required temperature class.
Material
Technical Features
GRP (Glassfiber reinforced polyester)
IP rating
Technical Features
IP66
Ambient temperature range
Technical Features
-50°C to +60°C (ATEX)
-50°C to +60°C (IECEx - up to +95°C for some "special" models)
-50°C to +60°C (IECEx - up to +95°C for some "special" models)
Approvals
Technical Features
IMQ 08 ATEX 028X - IMQ 16 ATEX 004U
IECEx IMQ 15.0002X - IECEx IMQ 15.0010U
TR CU
IECEx IMQ 15.0002X - IECEx IMQ 15.0010U
TR CU
Marking
Technical Features
II 2 GD
Ex e IIC Gb / Ex ia Ga IIC T(**)
Ex tb IIIC T(**) Db IP66
** T6/T85°C, T5/T100°C, T4/T135°C
Ex e IIC Gb / Ex ia Ga IIC T(**)
Ex tb IIIC T(**) Db IP66
** T6/T85°C, T5/T100°C, T4/T135°C
Standard certificate label
Technical Features
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Technical Features
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Earth continuity plates
Passing through earth bolt.
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Earth continuity plates
Passing through earth bolt.
TECHNICAL FEATURES
Material
GRP (Glassfiber reinforced polyester)
IP rating
IP66
Ambient temperature range
-50°C to +60°C (ATEX)
-50°C to +60°C (IECEx - up to +95°C for some "special" models)
-50°C to +60°C (IECEx - up to +95°C for some "special" models)
Approvals
IMQ 08 ATEX 028X - IMQ 16 ATEX 004U
IECEx IMQ 15.0002X - IECEx IMQ 15.0010U
TR CU
IECEx IMQ 15.0002X - IECEx IMQ 15.0010U
TR CU
Marking
II 2 GD
Ex e IIC Gb / Ex ia Ga IIC T(**)
Ex tb IIIC T(**) Db IP66
** T6/T85°C, T5/T100°C, T4/T135°C
Ex e IIC Gb / Ex ia Ga IIC T(**)
Ex tb IIIC T(**) Db IP66
** T6/T85°C, T5/T100°C, T4/T135°C
Standard certificate label
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Earth continuity plates
Passing through earth bolt.
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Earth continuity plates
Passing through earth bolt.
