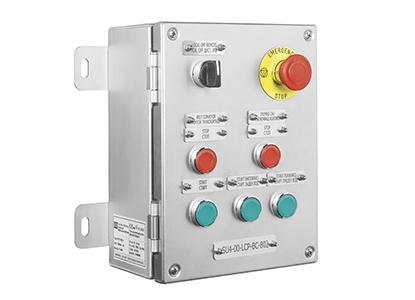

EFXE – IN STAINLESS STEEL
Push button stations EFXE Series, made of stainless steel AISI316L, are manufactured by using enclosures AQ../AR.. and SB Series.
They are designed to meet the requirements for use ON and OFF-SHORE, in petrochemical and marine applications and for any other industry where an explosive atmosphere may be present.
They can be equipped with following Ex de certified components:
- Standard and emergency push buttons
- Rotating switches
- Signalling lamps
- Measurement instruments
Material
Technical Features
Stainless steel AISI-316L
IP rating
Technical Features
IP66/IP67
Ambient temperature range
Technical Features
-50°C to +60°C (ATEX)
-50°C to +95°C (IECEx)
-50°C to +95°C (IECEx)
Approvals
Technical Features
IMQ 08 ATEX 028X
IECEx IMQ 15.0002X
TR CU
IECEx IMQ 15.0002X
TR CU
Marking
Technical Features
II 2 GD
Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
Ex tb IIIC T(**) Db IP66/67
** T6/T85°C, T5/T100°C, T4/T135°C
Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
Ex tb IIIC T(**) Db IP66/67
** T6/T85°C, T5/T100°C, T4/T135°C
Surface treatment
Technical Features
Acid treatment
Standard certificate label
Technical Features
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Technical Features
Electropolish treatment
Side gland plates
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Locking facility
Passing through earth bolt
Side gland plates
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Locking facility
Passing through earth bolt
TECHNICAL FEATURES
Material
Stainless steel AISI-316L
IP rating
IP66/IP67
Ambient temperature range
-50°C to +60°C (ATEX)
-50°C to +95°C (IECEx)
-50°C to +95°C (IECEx)
Approvals
IMQ 08 ATEX 028X
IECEx IMQ 15.0002X
TR CU
IECEx IMQ 15.0002X
TR CU
Marking
II 2 GD
Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
Ex tb IIIC T(**) Db IP66/67
** T6/T85°C, T5/T100°C, T4/T135°C
Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
Ex tb IIIC T(**) Db IP66/67
** T6/T85°C, T5/T100°C, T4/T135°C
Surface treatment
Acid treatment
Standard certificate label
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Electropolish treatment
Side gland plates
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Locking facility
Passing through earth bolt
Side gland plates
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Locking facility
Passing through earth bolt
