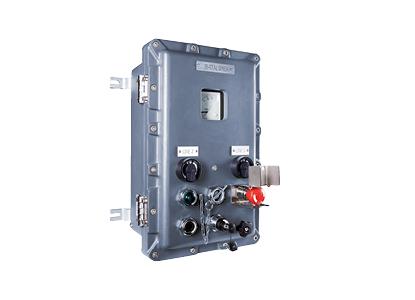

EJB IN ALUMINIUM
EJB.. series enclosures offers Ex d IIB or IIB+H2 mode of protection. They are suitable for hazardous areas of industrial plants for indoor and outdoor applications They can be equipped with following components:
- Push buttons and mechanical operators PL.. Series;
- Rotating switches PSRC Series;
- Signalling lamps PL.. Series;
- Potentiometers;
- Rotating handles SRC-1 or SRC-10;
- Measurement instruments;
- Electric and electronic equipment;
- Windows made of tempered glass. They can be used in different applications such as push button stations, instrument housing, lighting distribution panels, power distribution panels, heat tracing panels, motor protection, etc.
Material
Technical Features
Aluminium with low content of copper
IP rating
Technical Features
IP65, IP66, IP67 with flanged joint coated with silicone grease
Ambient temperature range
Technical Features
-50°C to +60°C
Approvals
Technical Features
INERIS 00ATEX0021X
TR CU IECEx
INE 10.0015X
INMETRO
TR CU IECEx
INE 10.0015X
INMETRO
Marking
Technical Features
II 2 GD
Ex d IIB T(**) Gb or Ex d IIB+H2 T(**) Gb
Ex tb IIIC T(**) Db IP65 or 66 or 67
** T6/T85°C, T5/T100°C, T4/T135°C, T3/T200°C
II 2(1) GD
Ex d [ia Ga] IIB T6 Gb or Ex d [ia Ga] IIB+H2 T6 Gb
Ex tb [ia Da] IIIC T85°C Db IP65 or 66 or 67
II 2(2) GD
Ex d [ib] IIB T6 Gb or Ex d [ib] IIB+H2 T6 Gb
Ex tb [ib] IIIC T85°C Db IP65 or 66 or 67
Ex d IIB T(**) Gb or Ex d IIB+H2 T(**) Gb
Ex tb IIIC T(**) Db IP65 or 66 or 67
** T6/T85°C, T5/T100°C, T4/T135°C, T3/T200°C
II 2(1) GD
Ex d [ia Ga] IIB T6 Gb or Ex d [ia Ga] IIB+H2 T6 Gb
Ex tb [ia Da] IIIC T85°C Db IP65 or 66 or 67
II 2(2) GD
Ex d [ib] IIB T6 Gb or Ex d [ib] IIB+H2 T6 Gb
Ex tb [ib] IIIC T85°C Db IP65 or 66 or 67
Surface treatment
Technical Features
Green colour polyurethane painting cycle RAL6003 (other colour available upon request)
Entries
Technical Features
Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125
Hardware and screws
Technical Features
AISI316 Stainless steel external screws
Standard certificate label
Technical Features
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Technical Features
Mounting brackets
Drain/breather valve
Hinges
Door handle
Internal anticondensate painting
Traffolyte/Stainless steel certificate label.
Drain/breather valve
Hinges
Door handle
Internal anticondensate painting
Traffolyte/Stainless steel certificate label.
TECHNICAL FEATURES
Material
Aluminium with low content of copper
IP rating
IP65, IP66, IP67 with flanged joint coated with silicone grease
Ambient temperature range
-50°C to +60°C
Approvals
INERIS 00ATEX0021X
TR CU IECEx
INE 10.0015X
INMETRO
TR CU IECEx
INE 10.0015X
INMETRO
Marking
II 2 GD
Ex d IIB T(**) Gb or Ex d IIB+H2 T(**) Gb
Ex tb IIIC T(**) Db IP65 or 66 or 67
** T6/T85°C, T5/T100°C, T4/T135°C, T3/T200°C
II 2(1) GD
Ex d [ia Ga] IIB T6 Gb or Ex d [ia Ga] IIB+H2 T6 Gb
Ex tb [ia Da] IIIC T85°C Db IP65 or 66 or 67
II 2(2) GD
Ex d [ib] IIB T6 Gb or Ex d [ib] IIB+H2 T6 Gb
Ex tb [ib] IIIC T85°C Db IP65 or 66 or 67
Ex d IIB T(**) Gb or Ex d IIB+H2 T(**) Gb
Ex tb IIIC T(**) Db IP65 or 66 or 67
** T6/T85°C, T5/T100°C, T4/T135°C, T3/T200°C
II 2(1) GD
Ex d [ia Ga] IIB T6 Gb or Ex d [ia Ga] IIB+H2 T6 Gb
Ex tb [ia Da] IIIC T85°C Db IP65 or 66 or 67
II 2(2) GD
Ex d [ib] IIB T6 Gb or Ex d [ib] IIB+H2 T6 Gb
Ex tb [ib] IIIC T85°C Db IP65 or 66 or 67
Surface treatment
Green colour polyurethane painting cycle RAL6003 (other colour available upon request)
Entries
Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125
Hardware and screws
AISI316 Stainless steel external screws
Standard certificate label
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Mounting brackets
Drain/breather valve
Hinges
Door handle
Internal anticondensate painting
Traffolyte/Stainless steel certificate label.
Drain/breather valve
Hinges
Door handle
Internal anticondensate painting
Traffolyte/Stainless steel certificate label.
