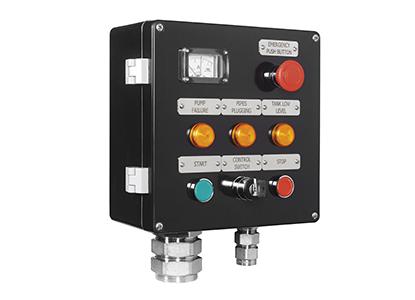

EFE – IN GRP

Push button stations EFE Series, made of GRP, are manufactured by using enclosure AQ../AR.. Series.
They are designed to meet the requirements for use ON and OFF-SHORE, in petrochemical and marine applications and for any other industry where an explosive atmosphere may be present.
They can be equipped with following Ex de certified components:

  • Standard and emergency push buttons
  • Rotating switches
  • Signalling lamps
  • Measurement instruments
Material
Technical Features
GRP (Glassfiber reinforced polyester)
IP rating
Technical Features
IP66
Ambient temperature range
Technical Features
-50°C to +60°C (ATEX)
-50°C to +95°C (IECEx)
Approvals
Technical Features
IMQ 08 ATEX 028X
IECEx IMQ 15.0002X
TR CU
Marking
Technical Features
II 2 GD
Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
Ex tb IIIC T(**) Db IP66/67
** T6/T85°C, T5/T100°C, T4/T135°C
Standard certificate label
Technical Features
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Technical Features
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Earth continuity plates
Passing through earth bolt.

TECHNICAL FEATURES

Material
GRP (Glassfiber reinforced polyester)
IP rating
IP66
Ambient temperature range
-50°C to +60°C (ATEX)
-50°C to +95°C (IECEx)
Approvals
IMQ 08 ATEX 028X
IECEx IMQ 15.0002X
TR CU
Marking
II 2 GD
Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
Ex tb IIIC T(**) Db IP66/67
** T6/T85°C, T5/T100°C, T4/T135°C
Standard certificate label
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Earth continuity plates
Passing through earth bolt.
