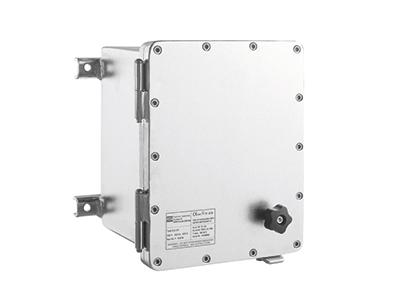

EJB IN AISI 316L STAINLESS STEEL / GALV. CARBON STEEL
EJB.. series enclosures offers Ex d IIB or IIB+H2 mode of protection. They are suitable for hazardous areas of industrial plants for indoor and outdoor applications. They can be equipped with following components:
- Push buttons and mechanical operators PL.. Series;
- Rotating switches PSRC Series;
- Signalling lamps PL.. Series;
- Potentiometers;
- Rotating handles SRC-1 or SRC-10;
- Measurement instruments;
- Electric and electronic equipment;
- Windows made of tempered glass. They can be used in different applications such as push button stations, instrument housing, lighting distribution panels, power distribution panels, heat tracing panels, motor protection, etc.
Material
Technical Features
Stainless steel AISI 316 L
IP rating
Technical Features
IP65, IP66, IP67 with flanged joint coated with silicone grease
Ambient temperature range
Technical Features
-50°C to +60°C
Approvals
Technical Features
INERIS 00ATEX0021X
TR CU
IECEx INE 10.0015X
INMETRO
TR CU
IECEx INE 10.0015X
INMETRO
Marking
Technical Features
II 2 GD
Ex d IIB T(**) Gbor Ex d IIB+H2 T(**) Gb
Ex tb IIIC T(**) Db IP65 or 66 or 67
** T6/T85°C, T5/T100°C, T4/T135°C, T3/T200°C
II 2(1) GD
Ex d [ia
a] IIB T6 Gb or Ex d [ia Ga] IIB+H2 T6 Gb
Ex tb [ia Da] IIIC T85°C Db IP65 or 66 or 67
II 2(2) GD
Ex d [ib] IIB T6 Gb or Ex d [ib] IIB+H2 T6 Gb
Ex tb [ib] IIIC T85°C Db IP65 or 66 or 67
Ex d IIB T(**) Gbor Ex d IIB+H2 T(**) Gb
Ex tb IIIC T(**) Db IP65 or 66 or 67
** T6/T85°C, T5/T100°C, T4/T135°C, T3/T200°C
II 2(1) GD
Ex d [ia
a] IIB T6 Gb or Ex d [ia Ga] IIB+H2 T6 Gb
Ex tb [ia Da] IIIC T85°C Db IP65 or 66 or 67
II 2(2) GD
Ex d [ib] IIB T6 Gb or Ex d [ib] IIB+H2 T6 Gb
Ex tb [ib] IIIC T85°C Db IP65 or 66 or 67
Surface treatment
Technical Features
Unpainted
Entries
Technical Features
Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125
Hardware and screws
Technical Features
AISI316 Stainless steel external screws
Standard certificate label
Technical Features
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Technical Features
Drain/breather valve
Door handle
External polyurethane painting cycle
Internal anticondensate painting
Traffolyte/Stainless steel certificate label.
Door handle
External polyurethane painting cycle
Internal anticondensate painting
Traffolyte/Stainless steel certificate label.
TECHNICAL FEATURES
Material
Stainless steel AISI 316 L
IP rating
IP65, IP66, IP67 with flanged joint coated with silicone grease
Ambient temperature range
-50°C to +60°C
Approvals
INERIS 00ATEX0021X
TR CU
IECEx INE 10.0015X
INMETRO
TR CU
IECEx INE 10.0015X
INMETRO
Marking
II 2 GD
Ex d IIB T(**) Gbor Ex d IIB+H2 T(**) Gb
Ex tb IIIC T(**) Db IP65 or 66 or 67
** T6/T85°C, T5/T100°C, T4/T135°C, T3/T200°C
II 2(1) GD
Ex d [ia
a] IIB T6 Gb or Ex d [ia Ga] IIB+H2 T6 Gb
Ex tb [ia Da] IIIC T85°C Db IP65 or 66 or 67
II 2(2) GD
Ex d [ib] IIB T6 Gb or Ex d [ib] IIB+H2 T6 Gb
Ex tb [ib] IIIC T85°C Db IP65 or 66 or 67
Ex d IIB T(**) Gbor Ex d IIB+H2 T(**) Gb
Ex tb IIIC T(**) Db IP65 or 66 or 67
** T6/T85°C, T5/T100°C, T4/T135°C, T3/T200°C
II 2(1) GD
Ex d [ia
a] IIB T6 Gb or Ex d [ia Ga] IIB+H2 T6 Gb
Ex tb [ia Da] IIIC T85°C Db IP65 or 66 or 67
II 2(2) GD
Ex d [ib] IIB T6 Gb or Ex d [ib] IIB+H2 T6 Gb
Ex tb [ib] IIIC T85°C Db IP65 or 66 or 67
Surface treatment
Unpainted
Entries
Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125
Hardware and screws
AISI316 Stainless steel external screws
Standard certificate label
Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories available upon request
Drain/breather valve
Door handle
External polyurethane painting cycle
Internal anticondensate painting
Traffolyte/Stainless steel certificate label.
Door handle
External polyurethane painting cycle
Internal anticondensate painting
Traffolyte/Stainless steel certificate label.
